Circuit Diagram Constructor

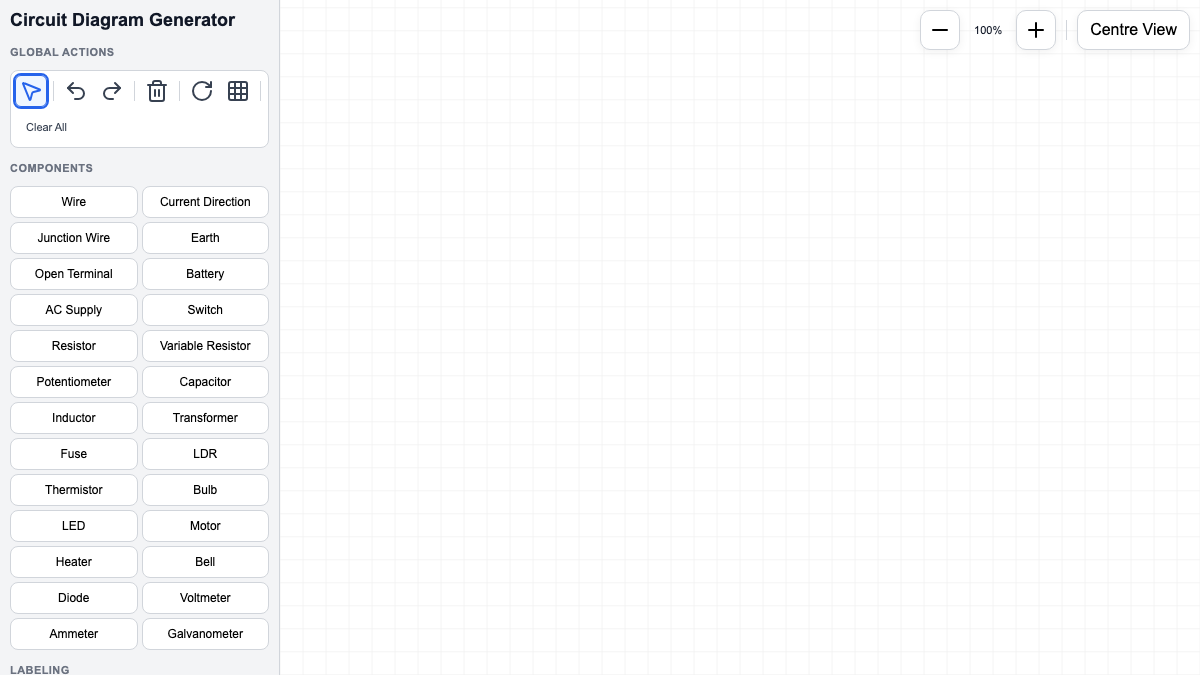

Open in new tab 🔗 For the longest time, Physics teachers have had to either create circuit diagrams painstakingly using Microsoft Word or using LaTeX. However, recently String.sg...
IP4 12 DC Circuits
Simulation for Series and Parallel Circuit
Circuit Configuration: Series Circuit Parallel Circuit Bulb 1 Resistance (Ω): 2.0 Ω Bulb 2 Resistance (Ω): 2.0 Ω Drag the ammeter (A) or voltmeter (V) onto a bulb to attach....
DC Circuits Practice
The simulation below allows students to practise calculating potential differences and currents of a slightly complex circuit, involving three different modes that can be toggled...
Delight - a web-based board game on electricity
I had previously shared about this physical board game that I designed to teach electricity concepts. Now, with ChatGPT's help, I have managed to produce a simple implementation...
Internal Resistance and Terminal Potential Difference
https://www.geogebra.org/m/puvfjxk5 This applet demonstrates how terminal potential difference (as measured by the voltmeter across the terminals of the battery) changes depending...
Potential Divider with Thermistor Applet
The wonderful thing about GeoGebra is that you can whip up an applet from scratch within an hour just before your lesson and use it immediately to demonstrate a concept involving...
Videos on Series and Parallel Bulbs
These are two videos that I made on series and parallel bulbs. The second video is specially made to highlight the increase in brightness of the remaining bulbs when one or more...
Hidden Circuits Interactive
I made this interactive tool using javascript for the teaching of DC circuits for integration with SLS as part of the IP4 Physics blended learning experience in the upcoming...
Internal Resistance and Maximum Power Theorem
I've created this simulation to demonstrate the effect of an internal resistance due to a cell on the potential difference and current of an external load. One can also vary the...
Brightness of Bulbs
The Potential Divider Rule
Introducing Delight! An Educational Board Game on Current Electricity
Download Now Delight by Tan Seng Kwang is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 3.0 Unported License . An educational board game for 2 or any even...
